■ 基本信息
啟動子: | URA3，T7,T3 |
復制子: | pUC |
質粒分類: | 酵母系列，釀酒酵母表達載體 |
質粒大小: | 4887bp |
原核抗性: | Amp |
真核抗性: | URA3 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 酵母細胞 |
誘導方式: | 半乳糖誘導 |
5'測序引物: | T7:TAATACGACTCACTATAGGG |
3'測序引物: | M13R:CAGGAAACAGCTATGACC |
■ 質粒屬性
質粒宿主: | 酵母菌 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Amp |
真核抗性: | URA3
|
熒光標記: |
|
■ 質粒簡介
This is one of a series of pBluescript based YC type (centromeric) yeast shuttle vectors (ATCC 77142 77145) differing in the yeast selectable marker gene. It encodes the beta galactosidase alpha peptide for blue white color detection of inserts and also has the T7 and T3 promoters for in vitro RNA synthesis and priming sites for sequencing. It is useful in plasmid shuffling experiments. It was constructed by inserting a 1.112 kb fragment containing the URA3 gene into the NdeI site of the pRSS56 vector and also inserting a cassette containing CEN6 and the ARS associated with histone 4 (ARSH4) into the AatII site of the same vector. All ends were blunted. The pRSS56 vector was constructed by ligating a PvuI fragment (bp 498 2412) of pBluescript KS+ and the fragment from the unique NdeI and AatII sites between bla and f1 origin of pBS(+). The order of the major features in this plasmid is: URA3 f1 ori (NaeI) T7 promoter lacZ/MCS T3 promoter pMB1 ori bla CEN6 ARSH4.

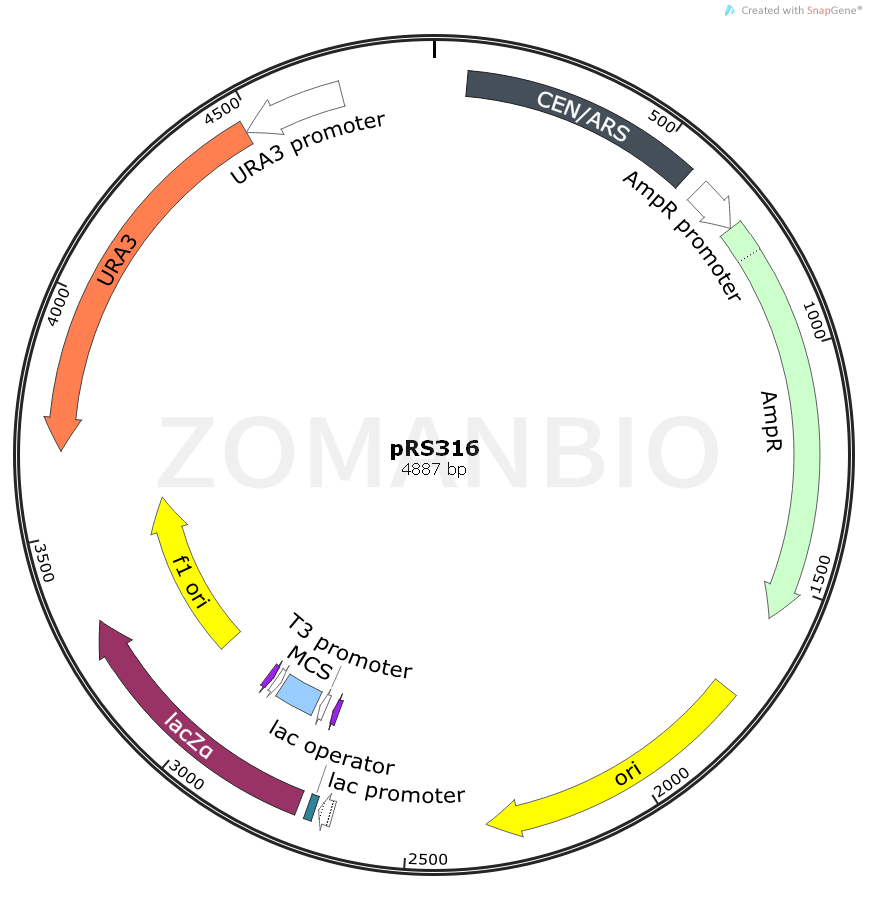

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK958pRS316釀酒酵母質粒.txt
